HMC系列(例:HMC-80型)
ACTION:

This clutch is a magnetic close type which engages on when coil is excited. The field is excited then and magnetizes rotor to engage for facing with friction force. When the current is interrupted, magnetizing is disapeared and armature returns back quickly with release spring and then clutch is rereased. Clutch torque can be easely controlled by adjusting current.

Major characteristics.
characteristics
model No:HMC-
HMC-30
HMC-40
HMC-50
HMC-60
HMC-80
HMC-100
HMC-120
Rated torque Nm
7
20
40
60
150
280
550
Rated voltage DC V
90
90
90
90
90
90
90
Coil resistance
(20℃)
Ω*
874
794
481
426
229
210
136
Coil current
(20℃)
A
0.10
0.11
0.19
0.21
0.39
0.43
0.66
Allowable braking energy rate W
52
70
139
327
471
716
1074
Allowable total braking energy MJ
240
470
610
1150
1610
1990
3660
Maximum safety speed r/min
1800
Weight kg
1.2
3.4
3.8
6.7
11.6
17.8
32.2

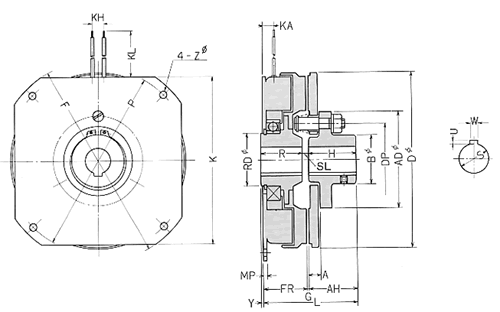

Major dimension.
model No.
HMC-
Dimension
Z
max hole dia
D
G
H
K
L
P
SL
SH7
WF7
*
**
HMC-30
81
0.5
20
75
68
86
14
12
4
4.5
18
---
HMC-40
116
0.5
32
108
90
124
9.5
20
5
6.6
28
---
HMC-50
137
0.5
35
127
90
150
12.5
22
7
6.6
28
25
HMC-60
170
0.5
46
160
99.5
190
11
28
7
6.6
40
35
HMC-80
218
0.7
59
208
116
230
7.7
32
10
9
35
35
HMC-100
267
0.7
73
---
138
156
4.7
42
12
9
55
50
HMC-120
325
1
74
---
141
182
6
50
12
9
60
60

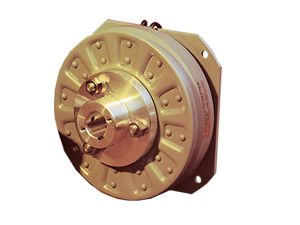

Illustration.
