ZBP/ZCP系列(ZBP:ZBP-05,ZBP-06,ZBP-08,ZBP-10,ZBP-12,ZBP-16;ZCP:ZCP-05,ZCP-06,ZCP-08,ZCP-10,ZCP-12,ZCP-16)

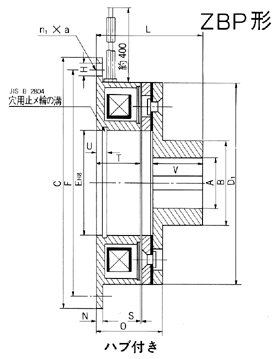

ZBP disc spring type electromagnetic brake

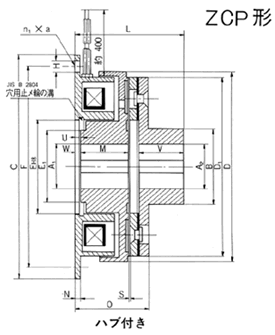

ZCP disc spring type electromagnetic clutch
Dimension:
characteristics and rating
model No:ZBP/ZCP-

ZBP-05

ZCP-05

ZBP-06

ZCP-06

ZBP-08

ZCP-08

ZBP-10

ZCP-10

ZBP-12

ZCP-12

ZBP-16

ZCP-16

Torque Nm
2.5
5
10
20
40
80
Standard hole dia of
φA、φA1、φA2 H7
10
10
17
29
25
30
Max hole dia of
φA、φA1、φA2 H7
15
15
20
25
30
40
Rated voltage DC V
24/90
Wattage
(20℃)
W
10
11
15
20
25
35
Outer dia φC h9
65
80
100
125
150
190
Length of L1 (ZBP)
37.2
37
44.5
53
61
73
Length of L1 (ZCP)
43.3
43
51
61
70.5
84.5


Illustration
