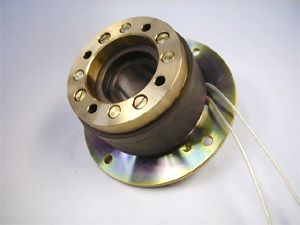

STC-86型

STC-86 ACTION:

STC type synchiro tooth clutch engages driven shaft and subordinated shaft at definite position engaging. (A clutch for definite position engaging ) STC has a special tooth to engage at one definite position on the circumference. STC is used for position setting or synchronized operation of machne tool, printing machine and industrial machines.

Specification:
Torque
Voltage
Wattage
Weight
100Nm
DC24V
32W *
2kg

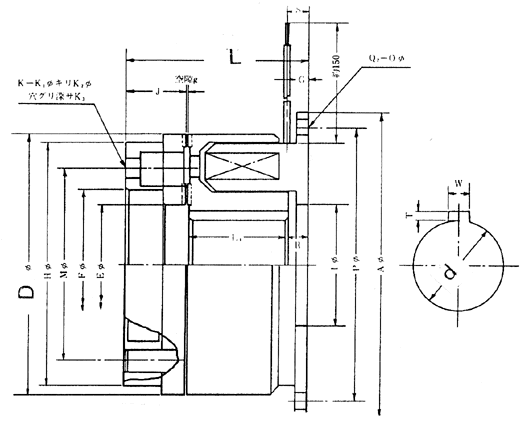

Dimension:
A
P
D
L
d
T
W
124
106
86
60
30
7
3


Illustration.
stc-86
