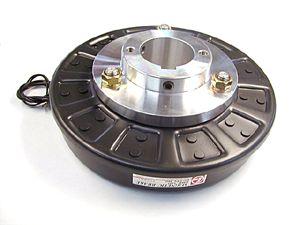

DMB系列（DMB-20，DMB-30，DMB-40，DMB-50，DMB-60，DMB-90，DMB-W100，DMB-W120，DMB-W150）
ACTION:

DMB brake is an electromagnetic actuated type which produces the braking force when the coil is excited. Exciting the coil, field magnetizes rotor and armature is attracted to the facing, and then braking force is produced with its friction. Interrupting the coil current, magnet releases armature with release spring to the former disconnected position. Clutch torque is adjustable to change the coil current.
Major characteristics.
characteristics
model No：DMB-
DMB-30
DMB-40
DMB-50
DMB-60
DMB-80
DMB-100
DMB-120
Rated torque Nm
7
20
40
60
150
280
550
Rated voltage DC V
90
Coil resistance (20℃) Ω
874
794
481
426
229
210
136
Coil current
(20℃) 		A
0.10
0.11
0.19
0.21
0.39
0.43
0.66
Allowable braking energy rate W
52
70
139
327
471
716
1047
Allowable total braking energy MJ
240
470
610
1150
1610
1990
3660
Maximum safety speed r/min
1800
Weight kg
0.86
2.28
2.51
4.39
7.73
10.8
22.0

Major dimensions.
Dimension
model No：DMB-
DMB-30
DMB-40
DMB-50
DMB-60
DMB-80
DMB-100
DMB-120
D
76
110
128
162
218
267
325
G
0.5
0.5
0.5
0.5
0.7
0.7
1.0
H
20
29
32
40
45
65
75
L
60
76.7
76
87
96.4
91.7
105.5
P
86
124
56
68
108
156
182
SH7 standard dia of shaft hole
14/16
16/18
18/22
28/32
32
42
50
Max. avairable dia of shaf hole
18
28
35
40
38
60
60

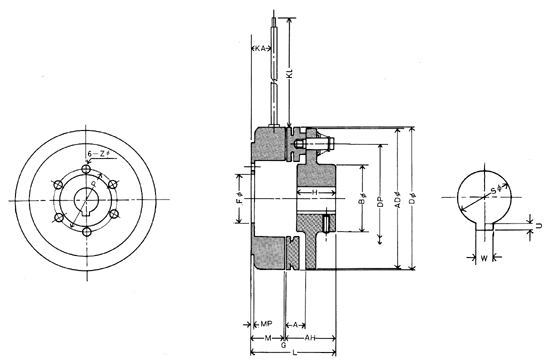

Illustration.
